Seeking a HALS Business Partner
GRAPAC is seeking companies to work together with us in expanding business related to HALS and 3D printing. Please utilize one of these business models according to your needs.
We are selling Hals lens sheet to the companies, who can meet all the necessary requirements for HALS sheet printing.
We are producing and selling Hals finished products to the companies, who do not carry out manufacturing processes.
We are also able to offer printed HALS Sheets that have not been postpress processed.

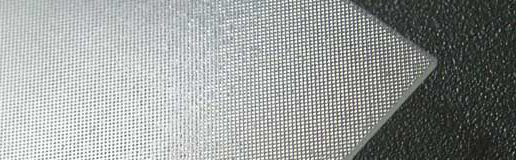

HALS Sheet
Product Specifications
The Specifications of HALS Lens Sheet
| Type | Material thickness | Material | Sheet dimensions | Lens surface dimensions |
|---|---|---|---|---|
HALS-H 250T-PP
|
0.25
|
PP
|
508 × 720
|
483 × 700
|
HALS-H 300T-PP
|
0.30
|
508 × 720
|
483 × 700
|
|
HALS-H 300T-PP*
|
720 × 1020
|
690 × 990
|
| Type | Material thickness | Material | Sheet dimensions | Lens surface dimensions |
|---|---|---|---|---|
HALS-S 400-PP
|
0.4
|
PP
|
508 × 720
|
483 × 700
|
HALS-S 400-PP*
|
0.4
|
720 × 1020
|
690 × 990
|
|
HALS-S 500-PP*
|
0.5
|
508 × 720
|
483 × 700
|
|
HALS-S 400-PET
|
0.4
|
PET
|
508 × 720
|
483 × 700
|
HALS-S 500-PET*
|
0.5
|
508 × 720
|
483 × 700
|
so please inquire these Lens Sheets of us in advance.
[1] 0.5mm PP/PET HALS Lens Sheet
[2] 0.3mm PP/0.4mm PP large size (720mmx1020mm) HALS Lens Sheet
◯Concerning manufacturing and Image processing method of HALS Lens Sheet,
we have already obtained International Patent.
Recommendable
Condition for HALS Sheet printing
1) Technical staff with appropriate know-how in printing techniques.
2) An offset printing press 28 inches or wider, with UV curing unit installed.
3) A CTP, which output resolution is 2,400 dpi or better (4,000 dpi or higher).
4) An experience in printing on transparent media and lenticular materials.
Sales point of
HALS
HALS is a medium for producing printed matter that has a strong impact.
HALS is a film for visual effect printing for which designs can be made using normal DTP software.
HALS is a highly original micro-lens sheet manufactured using a method patented by GRAPAC.
HALS offers new sources of value to offset printing presses with UV curing units installed.
The visual effect patterns and materials used in HALS are extremely adaptable and expandable, and HALS itself is still undergoing a process of advancement.
